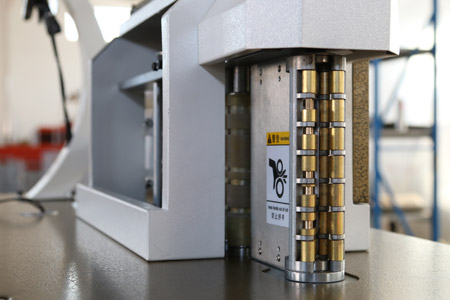

Product name : DSD-160 Aluminum Aluminum Channel Letter Bending Machine
Item : DSD-L160
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:


DSD-L160 Aluminum Channel Letter Bending Machine is professional for outdoor and infoor quality advertising letters,
signs and lamp house,like LED aluminum letters,metal letters,endless letters,the resin luminous letters smooth and delicate cutting,low noise,
stable performance,one button operation and cost-effective,is your first choice of economical and practial device.


DETAILS:



ADVANTAGE:

 1.With five-axis mechanical construction-feeding, lifting, cutting, and bending once forming, to ensure accurate and stable arc.

 2.With brushless DC Cutting motor , adjustable speed, application of various materials.

 3.With the closed loop self-test system, the device features high measuring precision in the long run ,
The whole error is less than 0.1mm comparing with the acrylic panel.

 4. Imported side rails positioning cutting, to ensure the cutting stability.

 5.Curved arc is rebound coefficient intelligent compensation to ensure the accuracy of various materials forming.




Technical Parameters:

Working Principle



 high accuracy auto feeding, auto straightening, auto cutting, auto bending



 Model



 DSD-L160



Application Materials



Aluminum flat strip,aluminum strip with folded edge,aluminum profile



 Slot Degree



 60-135 Degree(no angle limit for flat materials)



 Bending Diameter



≥5mm



 Material Width



 ≤160mm



 Material Thickness



Aluminum profile thickness: 0.3-1.5mm,Aluminum strips thickness≤1.5mm



 Total Power



 1500W



 File Format



 dxf, ai,plt



Machine/Packing Size



1400*1200*1400



Weight



 230KG



 Voltage



 220V



Air Pressure



0.3-0.8Mpa


APPLICATION:
