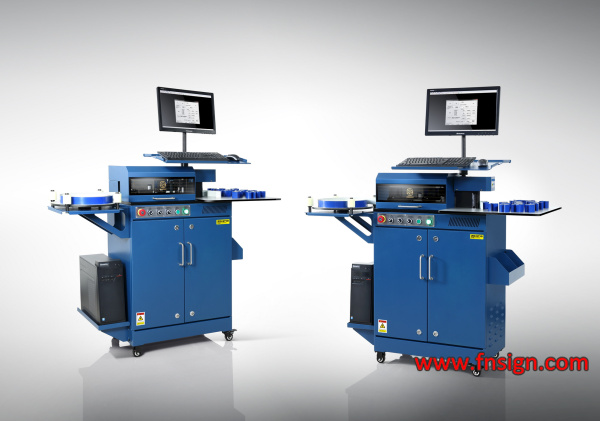

Product name : Automatic Aluminium coil,strip bending machine
Item : ZB-6710
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
  Aluminum coil bending machine,ZB-6710 automatic word bending machine adapt crawler feeding,V shape slotting, built-in closed-loop control system and  closed-loop monitoring graphical contour length feed accuracy of ± 0.1mm;



Its telescopic alternating bending mode make the shaping rate of processing products can reach over 90%;

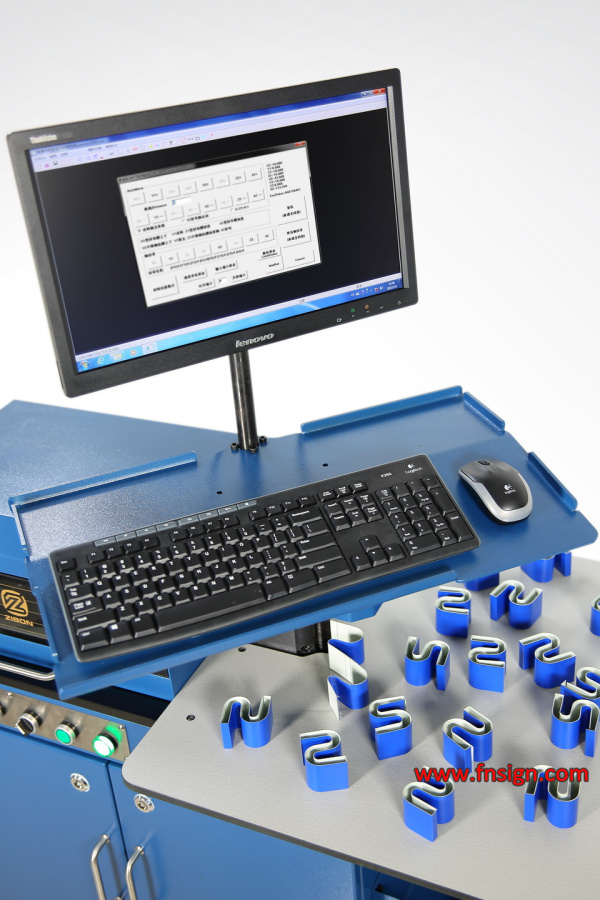

Its high-performance multi-axis motion control card and self-developed
software control system, with stable performance,constant slotting/notching depth ,
fast processing speed, etc.



It is a professional aluminum brimless word/letter bending machine.

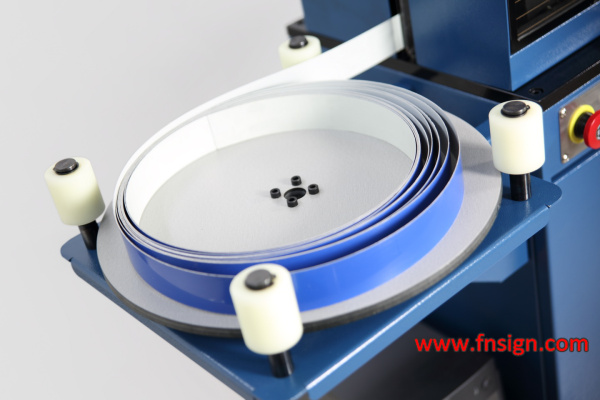

Crawler feeding mode, the built-in closed loop control system, the feed accuracy of +/- 0.1mm

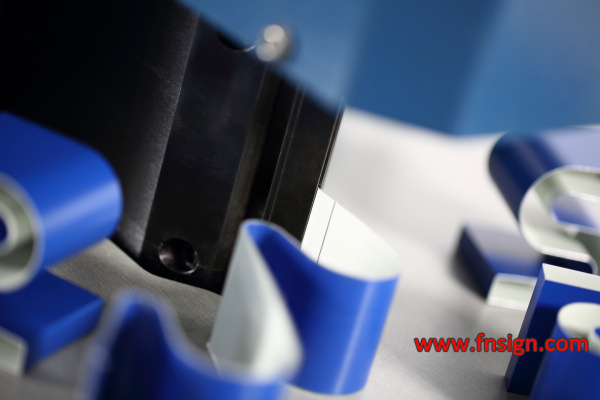

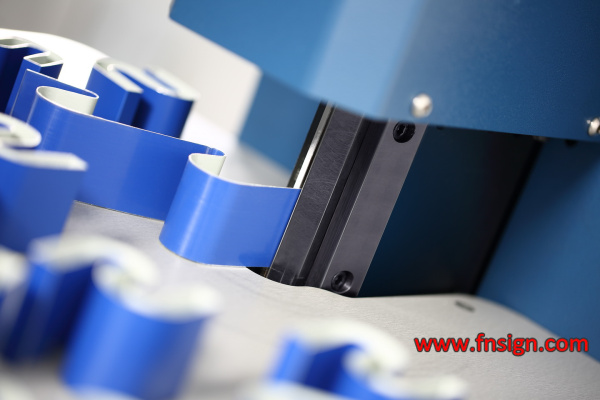

Telescopic alternate bending mechanism, forming rate up to 90%

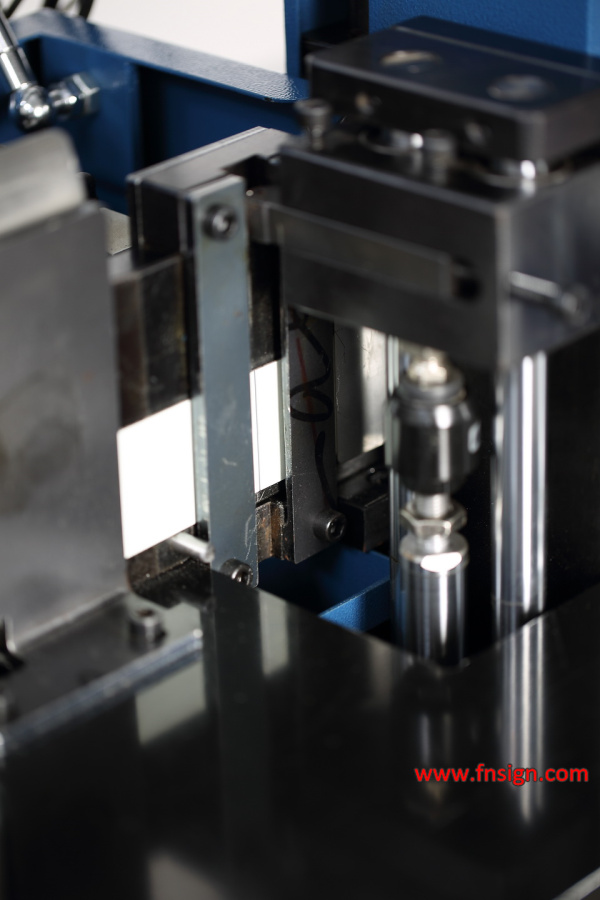

Constant depth Slot mechanism, more accurate match with the panel



Free software update forever

 Specification:

Voltage

AC220V

Power

1.0kw

Compressed air

0.2—0.4MPa

Applied Materials

Flat Aluminum strip,coil

Width of Material

10—80mm

File input software

CAD,TYPE3

File format

DXF/PLT

Feeding method

crawler feeding

Servo Motor

1pc

step motor

1pc

Dimension(L W H)

1460×600×1550mm

Weight

150kg
