Product name : 300mm--2400mm width Acrylic Bending Machine
Item : FRAW300-2400
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:



As there are many copycat product in market, please check the comparison report regarding our this machine compare with others as below:
 http://www.acrylicletter.com/html_news/Large-Acrylic-Bending-machine-comparison-3.html

300mm/600mm/1200mm/1800mm/2400mm width Acrylic Bending machine

This bending kit is mainly used in over 300mm length  acrylic sheet bending













 Voltage : 220V
 Size :  300mm    600mm   1200mm  1800mm  2400mm
  Power:500W     800W      1000W   1500W    2100W

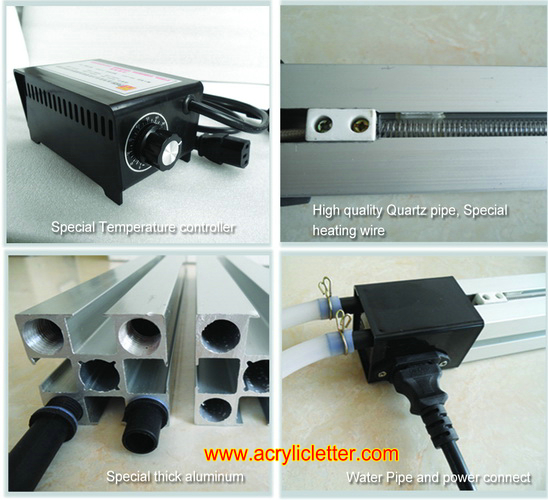

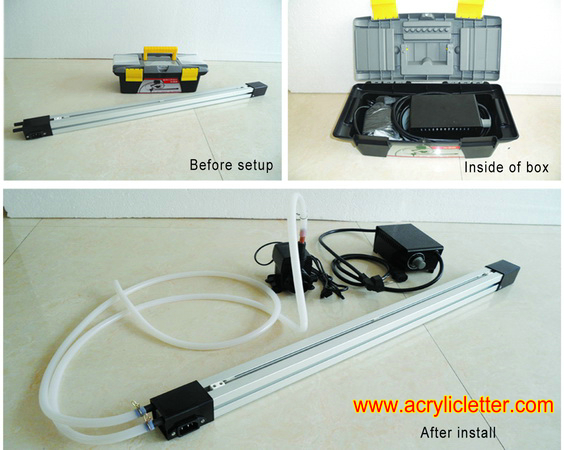

 Main Parts:  Mainbody 1Pc, Water pump 1pc, Temperature Controller1pc,silicon tube 2pc.




• The acrylic letter bending machine heater is the core part of letter bending machine. You can assemble various kinds of ideal practical

 acrylic bender with this heater.

• It can bend all kinds of plastic sheet. If the thickness of acrylic sheet is beyond 6mm, you can use two heaters heat the top and bottom of the sheet at the same time, or you need to cut a slot on the sheet.
• You can also use many heaters to heat more bents at the same time.



  • Reasonable design, small size, compact structure and beautiful appearance.
  • Heat even and temperature adjustable.
  • With circulating cooling water system on both sides of heating pipe;
  • power supply joint and waterpipe joint are at the same end;
  • The body is made of special aluminum extrusions.


  • Portable, small occupation, low consumption and reliable operation;
  • Light and practical with low cost, value-priced;
  • Circulating cooling water system can make sure other parts (no heating is required) won’t get thermal deformation.
  • Free plugging and unplugging, easy to storage and assembles to worktable very conveniently;
  • Straight appearance, the effective heating length is 610mm.

  •  Low consumption, low cost
  • Can be assembled to a hot bending machine or used alone;
  • Save space, light and practical;
  • Can bend all kinds of plastic sheet.

Comparison






Model FRAW-300
Maximum Bending Width 310mm
Power 500W
Power Supply 220V
Heating Slot Width 8mm
Heating Thickness 1-6mm
Heater Size 1.8" x 1.8" x 20.5"(45 x 45 x 520mm)
Heater packing size 4.9'' x 4.9'' x 25.8"(125 x 125 x 655mm)
Box packing Size 13.8'' x 7.9'' x 7.1''(350 x 200 x 180mm)
Gross Weight 5kg





Model FRAW-600
Maximum Bending Width 610mm
Power 800W
Power Supply 220V
Heating Slot Width 8mm
Heating Thickness 1-6mm
Heater Size 1.8" x 1.8" x 33.5"(45 x 45 x 850mm)
Heater packing size 4.9'' x 4.9'' x 38"(125 x 125 x 965mm)
Box packing Size 13.8'' x 7.9'' x 7.1''(350 x 200 x 180mm)
Gross Weight 6kg



Model FRAW-1200
Maximum Bending Width 1220mm
Power 1000W
Power Supply 220V
Heating Slot Width 8mm
Heating Thickness 1-6mm
Heater Size 1.8'' x 1.8'' x 58.3''(45 x 45 x 1480mm)
Heater packing size 4.9'' x 4.9'' x 61.3''(125 x 125 x 1556mm)
Box packing Size 13.8'' x 7.9'' x 7.1''(350 x 200 x 180mm)
Gross Weight 8kg






Model FRAW-1800
Maximum Bending Width 1830 mm
Power 1500W
Power Supply 220V
Heating Slot Width 8mm
Heating Thickness 1-6mm
Heater Size 1.8" x 1.8" x 79"(45 x 45 x 2006mm)
Heater packing size 4.9'' x 4.9'' x 85.4 "(125 x 125 x 2170mm)
Box packing Size 13.8'' x 7.9'' x 7.1''(350 x 200 x 180mm)
Gross Weight 10.5kg




Model FRAW-2400
Maximum Bending Width 2440mm
Power 2100W
Power Supply 220V
Heating Slot Width 8mm
Heating Thickness 1-6mm
Heater Size 1.8'' x 1.8'' x 105.5''(45 x 45 x 2680mm)
Heater packing size 4.9'' x 4.9'' x 10.9.6"(125 x 125 x 2785mm)
Box packing Size 13.8'' x 7.9'' x 7.1''(350 x 200 x 180mm)
Gross Weight 13.5kg
